Coil Shim Stock – 316 Stainless Steel
Coil Shim Stock – 316 Stainless Steel
Shim Stock – 316 Stainless Steel Flat Pack

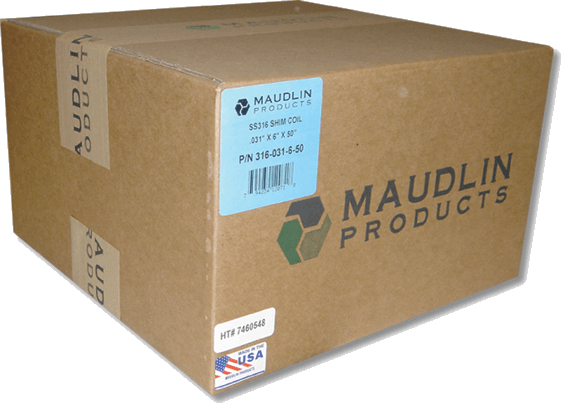

316 SS Shim Coil are packaged individually and color coded with blue labels describing thickness, width, length, and material. Heat numbers included on all boxes for easy traceability.

All Stainless Steel Coil is now marked for ease of identity and traceability. Printed directly on the shim coil: heat number, thickness, width, and type of material.

316SS is a high grade stainless steel product. It is ideal for applications in a more highly corrosive environment.

This particular stainless is able to withstand corrosion for a longer period of time than lower grades of stainless such as the 302/304.

Material Specs
Carbon.03 Max
Manganese2.00 Max
Sulphur.03 Max
Nickel10.00 - 14.00
Silicon.75 Max
Phosphorus.045 Max
Chromium16.00 - 19.00
Nitrogen.10 Max
Molybdenum2.0 - 3.0
TemperAnnealed
RockwellB88 Max
Tensile80,000 P.S.I. Min
Yield Strength40,000 P.S.I. Min
Elongation60% In 2"
Applicable SpecsAMS-5524K, ASTM-A-240, AMS-5507F

Thickness6" Wide12" Wide24" Wide
.001"checkMark
.002"checkMarkcheckMarkcheckMark
.003"checkMarkcheckMarkcheckMark
.004"checkMark
.005"checkMarkcheckMarkcheckMark
.006"checkMark
.007"checkMarkcheckMark
.008"checkMarkcheckMark
.009"checkMark
.010"checkMarkcheckMarkcheckMark
.012"checkMark
.015"checkMarkcheckMarkcheckMark
.020"checkMarkcheckMarkcheckMark
.025"checkMarkcheckMarkcheckMark
.031"checkMark
All widths are available in 100" lengths only.

ThicknessTolerance
.001"+ / - .00008
.002"+ / - .0001
.003"+ / - .00015
.004"+ / - .0002
.005"+ / - .00025
.006" - .020"+ / - .0005
.025. - .035""+ / - .0008
Sizes and Prices

Free Shipping for Shim Products over $50

~ Free Shipping Offer Only Applies To Online Shopping Cart Orders ~

Explore Product Details Below

6 x 50 Inch Coil

316-002-6-50 .002" x 6" x 50" $25.87 $0.00
-
+
✓
316-003-6-50 .003" x 6" x 50" $29.76 $0.00
-
+
✓
316-004-6-50 .004" x 6" x 50" $30.63 $0.00
-
+
✓
316-005-6-50 .005" x 6" x 50" $32.15 $0.00
-
+
✓
316-007-6-50 .007" x 6" x 50" $33.64 $0.00
-
+
✓
316-010-6-50 .010" x 6" x 50" $39.45 $0.00
-
+
✓
316-015-6-50 .015" x 6" x 50" $49.84 $0.00
-
+
✓
316-020-6-50 .020" x 6" x 50" $57.47 $0.00
-
+
✓
316-025-6-50 .025" x 6" x 50" $66.21 $0.00
-
+
✓
316-031-6-50 .031" x 6" x 50" $82.12 $0.00
-
+
✓

316-002-6-100 .002" x 6" x 100" $40.04 $0.00
-
+
✓
316-003-6-100 .003" x 6" x 100" $43.34 $0.00
-
+
✓
316-004-6-100 .004" x 6" x 100" $50.84 $0.00
-
+
✓
316-005-6-100 .005" x 6" x 100" $53.12 $0.00
-
+
✓
316-007-6-100 .007" x 6" x 100" $63.85 $0.00
-
+
✓
316-010-6-100 .010" x 6" x 100" $70.57 $0.00
-
+
✓
316-015-6-100 .015" x 6" x 100" $90.57 $0.00
-
+
✓
316-020-6-100 .020" x 6" x 100" $102.14 $0.00
-
+
✓
316-025-6-100 .025" x 6" x 100" $114.23 $0.00
-
+
✓
316-031-6-100 .031" x 6" x 100" $141.32 $0.00
-
+
✓

316-002-12-50 .002" x 12" x 50" $47.90 $0.00
-
+
✓
316-003-12-50 .003" x 12" x 50" $55.79 $0.00
-
+
✓
316-004-12-50 .004" x 12" x 50" $57.44 $0.00
-
+
✓
316-005-12-50 .005" x 12" x 50" $60.27 $0.00
-
+
✓
316-007-12-50 .007" x 12" x 50" $67.26 $0.00
-
+
✓
316-010-12-50 .010" x 12" x 50" $78.89 $0.00
-
+
✓
316-015-12-50 .015" x 12" x 50" $88.58 $0.00
-
+
✓
316-020-12-50 .020" x 12" x 50" $95.80 $0.00
-
+
✓
316-025-12-50 .025" x 12" x 50" $125.06 $0.00
-
+
✓
316-031-12-50 .031" x 12" x 50" $145.97 $0.00
-
+
✓

316-002-12-100 .002" x 12" x 100" $71.16 $0.00
-
+
✓
316-003-12-100 .003" x 12" x 100" $81.24 $0.00
-
+
✓
316-004-12-100 .004" x 12" x 100" $96.05 $0.00
-
+
✓
316-005-12-100 .005" x 12" x 100" $100.32 $0.00
-
+
✓
316-007-12-100 .007" x 12" x 100" $121.34 $0.00
-
+
✓
316-010-12-100 .010" x 12" x 100" $133.30 $0.00
-
+
✓
316-015-12-100 .015" x 12" x 100" $172.06 $0.00
-
+
✓
316-020-12-100 .020" x 12" x 100" $172.01 $0.00
-
+
✓
316-025-12-100 .025" x 12" x 100" $241.16 $0.00
-
+
✓
316-031-12-100 .031" x 12" x 100" $283.29 $0.00
-
+
✓

316-002-24-50 .002" x 24" x 50" $77.58 $0.00
-
+
✓
316-003-24-50 .003" x 24" x 50" $89.26 $0.00
-
+
✓
316-004-24-50 .004" x 24" x 50" $99.56 $0.00
-
+
✓
316-005-24-50 .005" x 24" x 50" $103.00 $0.00
-
+
✓
316-007-24-50 .007" x 24" x 50" $126.10 $0.00
-
+
✓
316-010-24-50 .010" x 24" x 50" $138.06 $0.00
-
+
✓
316-015-24-50 .015" x 24" x 50" $166.11 $0.00
-
+
✓
316-020-24-50 .020" x 24" x 50" $178.81 $0.00
-
+
✓
316-025-24-50 .025" x 24" x 50" $235.41 $0.00
-
+
✓
316-031-24-50 .031" x 24" x 50" $273.68 $0.00
-
+
✓

316-002-24-100 .002" x 24" x 100" $133.41 $0.00
-
+
✓
316-003-24-100 .003" x 24" x 100" $151.71 $0.00
-
+
✓
316-004-24-100 .004" x 24" x 100" $180.77 $0.00
-
+
✓
316-005-24-100 .005" x 24" x 100" $188.86 $0.00
-
+
✓
316-007-24-100 .007" x 24" x 100" $229.90 $0.00
-
+
✓
316-010-24-100 .010" x 24" x 100" $250.96 $0.00
-
+
✓
316-015-24-100 .015" x 24" x 100" $325.99 $0.00
-
+
✓
316-020-24-100 .020" x 24" x 100" $344.07 $0.00
-
+
✓
316-025-24-100 .025" x 24" x 100" $456.93 $0.00
-
+
✓
316-031-24-100 .031" x 24" x 100" $471.04 $0.00
-
+
✓

M31612-1 .001" X 8" X 12" 5 PC Pack $20.98 $0.00
-
+
✓
M31612-2 .002" X 8" X 12" 5 PC Pack $16.45 $0.00
-
+
✓
M31612-3 .003" X 8" X 12" 5 PC Pack $17.20 $0.00
-
+
✓
M31612-4 .004" X 8" X 12" 5 PC Pack $17.95 $0.00
-
+
✓
M31612-5 .005" X 8" X 12" 5 PC Pack $18.71 $0.00
-
+
✓
M31612-7 .007" X 8" X 12" 5 PC Pack $26.27 $0.00
-
+
✓
M31612-10 .010" X 8" X 12" 5 PC Pack $24.76 $0.00
-
+
✓
M31612-12 .012" X 8" X 12" 5 PC Pack $29.10 $0.00
-
+
✓
M31612-15 .015" X 8" X 12" 5 PC Pack $30.82 $0.00
-
+
✓
M31612-20 .020" X 8" X 12" 5 PC Pack $38.37 $0.00
-
+
✓
M31612-AL 9 PC ASST. 8" X 12" PC EA. .001, .002, .003, .004, .005, .007, .010, .012, .015, .020 $57.58 $0.00
-
+
✓

M31625-12 .012" X 6" X 25" 2 PC Pack $25.23 $0.00
-
+
✓
M31625-15 .015" X 6" X 25" 2 PC Pack $36.89 $0.00
-
+
✓
M31625-20 .020" X 6" X 25" 2 PC Pack $40.22 $0.00
-
+
✓
M31625-25 .025" X 6" X 25" 2 PC. Pack $45.02 $0.00
-
+
✓
M31625-31 .031" X 6" x 25" 2 PC Pack $51.46 $0.00
-
+
✓
