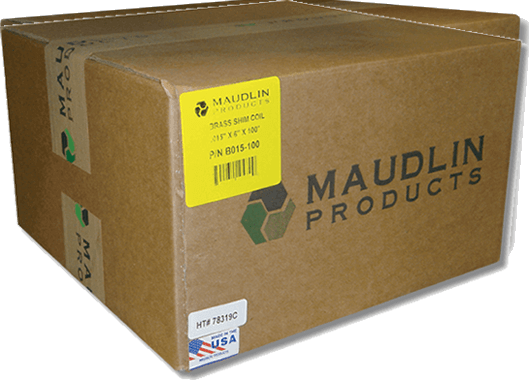

Brass Shim Coil are packaged individually and color coded with yellow labels describing thickness, width, length, and material.
Heat numbers are included on all boxes for easy traceability.
| Material Specs | |
|---|---|
| Copper | 68.5 - 71.5 |
| Lead | .050 Max |
| Iron | .050 Max |
| Zinc | Balance |
| Temper | 1/2 Hard 2 B&S #S Hard |
| Rockwell | 30T Approx 56-58 |
| Tensile | Approx 62,000 PSI |
| Elongation | 23% In 2" |
| Applicable Specs | ASTMB-36 |
| Thickness | 6" Wide | 12" Wide |
|---|---|---|
| .001" |  | |
| .002" | | |
| .003" | | |
| .004" | | |
| .005" | | |
| .006" | | |
| .007" | | |
| .008" | | |
| .010" | | |
| .012" | | |
| .015" | | |
| .020" | | |
| .025" | | |
| .031" | | |
| All widths are available in 50" & 100" lengths. 12" Available in 120" lengths only. | ||
| Thickness | Tolerance |
|---|---|
| .001" | + / - .0006 |
| .002" | + / - .0006 |
| .003" | + / - .0007 |
| .004" | + / - .0008 |
| .005" | + / - .0008 |
| .006" - .020" | + / - .0015 |
| .025. - .035"" | + / - .002 |
Product Details
| B001-50 | .001" x 6" x 50" | $8.94 | $0.00 |
-
+
|
|
| B002-50 | .002" x 6" x 50" | $9.37 | $0.00 |
-
+
|
|
| B003-50 | .003" x 6" x 50" | $7.94 | $0.00 |
-
+
|
|
| B005-50 | .005" x 6" x 50" | $5.87 | $0.00 |
-
+
|
|
| B004-50 | .004" x 6" x 50" | $6.97 | $0.00 |
-
+
|
|
| B006-50 | .006" x 6" x 50" | $12.76 | $0.00 |
-
+
|
|
| B007-50 | .007" x 6" x 50" | $14.61 | $0.00 |
-
+
|
|
| B010-50 | .010" x 6" x 50" | $9.74 | $0.00 |
-
+
|
|
| B008-50 | .008" x 6" x 50" | $11.18 | $0.00 |
-
+
|
|
| B012-50 | .012" x 6" x 50" | $23.24 | $0.00 |
-
+
|
|
| B015-50 | .015" x 6" x 50" | $14.27 | $0.00 |
-
+
|
|
| B020-50 | .020" x 6" x 50" | $18.23 | $0.00 |
-
+
|
|
| B025-50 | .025" x 6" x 50" | $24.60 | $0.00 |
-
+
|
|
| B031-50 | .031" x 6" x 50" | $28.94 | $0.00 |
-
+
|
| B001-100 | .001" x 6" x 100" | $13.83 | $0.00 |
-
+
|
|
| B002-100 | .002" x 6" x 100" | $17.85 | $0.00 |
-
+
|
|
| B003-100 | .003" x 6" x 100" | $14.98 | $0.00 |
-
+
|
|
| B004-100 | .004" x 6" x 100" | $17.09 | $0.00 |
-
+
|
|
| B005-100 | .005" x 6" x 100" | $9.77 | $0.00 |
-
+
|
|
| B006-100 | .006" x 6" x 100" | $24.63 | $0.00 |
-
+
|
|
| B007-100 | .007" x 6" x 100" | $28.33 | $0.00 |
-
+
|
|
| B008-100 | .008" x 6" x 100" | $21.45 | $0.00 |
-
+
|
|
| B010-100 | .010" x 6" x 100" | $18.50 | $0.00 |
-
+
|
|
| B012-100 | .012" x 6" x 100" | $45.60 | $0.00 |
-
+
|
|
| B015-100 | .015" x 6" x 100" | $26.84 | $0.00 |
-
+
|
|
| B020-100 | .020" x 6" x 100" | $34.75 | $0.00 |
-
+
|
|
| B025-100 | .025" x 6" x 100" | $45.33 | $0.00 |
-
+
|
|
| B031-100 | .031" x 6" x 100" | $54.00 | $0.00 |
-
+
|
| B001-12-120 | .001" x 12" x 120" | $23.34 | $0.00 |
-
+
|
|
| B002-12-120 | .002" x 12" x 120" | $22.04 | $0.00 |
-
+
|
|
| B003-12-120 | .003" x 12" x 120" | $33.23 | $0.00 |
-
+
|
|
| B004-12-120 | .004" x 12" x 120" | $42.47 | $0.00 |
-
+
|
|
| B005-12-120 | .005" x 12" x 120" | $32.68 | $0.00 |
-
+
|
|
| B010-12-120 | .010" x 12" x 120" | $60.83 | $0.00 |
-
+
|
|
| B015-12-120 | .015" x 12" x 120" | $90.24 | $0.00 |
-
+
|
|
| B020-12-120 | .020" x 12" x 120" | $77.08 | $0.00 |
-
+
|
| MFB-12 | .012" x 6" x 12" 2 PC Pack | $12.73 | $0.00 |
-
+
|
|
| MFB-15 | .015" x 6" x 12" 2 PC Pack | $8.17 | $0.00 |
-
+
|
|
| MFB-20 | .020" x 6" x 12" 2 PC Pack | $10.01 | $0.00 |
-
+
|
|
| MFB-25 | .025" x 6" x 12" 2 PC Pack | $11.97 | $0.00 |
-
+
|
|
| MFB-31 | .031" x 6" x 12" 2 PC Pack | $13.99 | $0.00 |
-
+
|
| MFB25-12 | .012" x 6" x 25" 2 PC Pack | $24.00 | $0.00 |
-
+
|
|
| MFB25-15 | .015" x 6" x 25" 2 PC Pack | $14.51 | $0.00 |
-
+
|
|
| MFB25-20 | .020" x 6" x 25" 2 PC Pack | $18.35 | $0.00 |
-
+
|
|
| MFB25-25 | .025" x 6" x 25" 2 PC Pack | $22.42 | $0.00 |
-
+
|
|
| MFB25-31 | .031" x 6" x 25" 2 PC Pack | $26.64 | $0.00 |
-
+
|
| MFB18-02 | .002" x 6" x 18" 10 PC. Pack | $31.92 | $0.00 |
-
+
|
|
| MFB18-01 | .001" x 6" x 18" 10 PC. Pack | $31.23 | $0.00 |
-
+
|
|
| MFB18-03 | .003" x 6" x 18" 10 PC. Pack | $26.92 | $0.00 |
-
+
|
|
| MFB18-04 | .004" x 6" x 18" 10 PC. Pack | $30.61 | $0.00 |
-
+
|
|
| MFB18-06 | .006" x 6" x 18" 10 PC. Pack | $43.77 | $0.00 |
-
+
|
|
| MFB18-05 | .005" x 6" x 18" 10 PC. Pack | $28.97 | $0.00 |
-
+
|
|
| MFB18-07 | .007" x 6" x 18" 10 PC. Pack | $50.21 | $0.00 |
-
+
|
|
| MFB18-08 | .008" x 6" x 18" 10 PC. Pack | $38.22 | $0.00 |
-
+
|
|
| MFB18-12 | .012" x 6" x 18" 10 PC. Pack | $80.38 | $0.00 |
-
+
|
|
| MFB18-10 | .010" x 6" x 18" 10 PC. Pack | $40.59 | $0.00 |
-
+
|
|
| MFB18-15 | .015" x 6" x 18" 10 PC. Pack | $46.21 | $0.00 |
-
+
|
|
| MFB18-20 | .020" x 6" x 18" 10 PC. Pack | $60.02 | $0.00 |
-
+
|
|
| MFB18-25 | .025" x 6" x 18" 10 PC. Pack | $74.70 | $0.00 |
-
+
|
|
| MFB18-31 | .031" x 6" x 18" 10 PC. Pack | $89.85 | $0.00 |
-
+
|
| MFB18-AS | 11 PC. Assrt - 6" 18" 1 PC. EA .001, .002, .003, .004, .005, .006, .007, .008, .010, . 012, .015 | $27.77 | $0.00 |
-
+
|
|
| MFB18-AL | 14 PC Assrt. - 6" x 18" 1 PC. EA .001, .002, .003, .004, .005, .006, .007, .008, .010, . 012, .015, .020, .025, .031 | $41.98 | $0.00 |
-
+
|
|
| B650-A | 4 PC. Assrt. - 1 PC. EA. 6" x 50" Roll .001, .002, .003, .004 | $18.63 | $0.00 |
-
+
|
|
| FBA-612L | 14 PC Assrt. - 6" x 12" 1 PC. EA .001, .002, .003, .004, .005, .006, .007, .008, .010, . 012, .015, .020, .025, .031 | $27.59 | $0.00 |
-
+
|
|
| FBA-612 | 11 PC. Assrt. - 6" x 12" 1 PC. EA .001, .002, .003, .004, .005, .006, .007, .008, .010, . 012, .015 | $21.79 | $0.00 |
-
+
|
