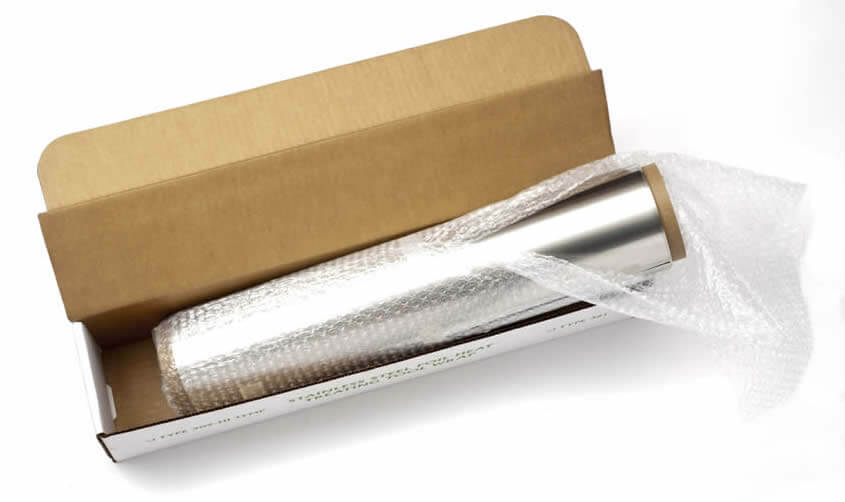

Stainless Steel Heat treat foil tool wrap is used for the surface protection of tools, dies and parts during heat treating applications by preventing decarburization or scaling.
- Protects parts and tools from oxide and scale buildup issues
- Shields the surface of air hardening tool steels
- Resistive against chromium carbide precipitation
- Prevents decarburization buildup
Stainless Steel Tool Wrap is used when heat treating tooling. The tooling is wrapped in the foil with the edges crimped to form an envelope. This will create an air-tight package that will prevent the loss of surface carbon during tool wrap heat treat heat treating. The loss of surface carbon causes the tooling to become scaled and damaged. Using tool wrap heat treat not only protects your tooling from expensive repairs it also eliminates the need for box packaging with charcoal or sawdust.
Also known as:
Tool Wrap Stainless Steel, Tool Wrap Foil, Tool Steel Foil Wrap, Tool Wrap Heat Treat, Tool Steel Wrap.
Maudlin products prides ourselves on our top of the line material.
We are proud to offer stainless steel tool wrap in 20″ & 10′ widths.
321 Stainless Steel Tool Wrap
| SSFW321-20-12 | SS321 FOIL Wrap .002" X 20" X 12' | $60.49 | $0.00 |
-
+
|
|
| SSFW321-20-25 | SS321 FOIL Wrap .002" X 20" X 25' | $100.45 | $0.00 |
-
+
|
|
| SSFW321-20-50 | SS321 FOIL Wrap .002" X 20" X 50' | $162.95 | $0.00 |
-
+
|
|
| SSFW321-20-100 | SS321 FOIL Wrap .002" X 20" X 100' | $314.80 | $0.00 |
-
+
|
| SSFW321-10-12 | SS321 FOIL WRAP .002" X 10" X 12' | $44.81 | $0.00 |
-
+
|
|
| SSFW321-10-25 | SS321 FOIL WRAP .002" X 10" X 25' | $64.89 | $0.00 |
-
+
|
|
| SSFW321-10-50 | SS321 FOIL WRAP .002" X 10" X 50' | $109.55 | $0.00 |
-
+
|
|
| SSFW321-10-100 | SS321 FOIL WRAP .002" X 10" X 100' | $205.40 | $0.00 |
-
+
|
309 Stainless Steel Tool Wrap
| SSFW309-20-12 | SS309 Foil Wrap .002" x 20" x 12' | $72.04 | $0.00 |
-
+
|
|
| SSFW309-20-25 | SS309 Foil Wrap .002" x 20" x 25' | $130.38 | $0.00 |
-
+
|
|
| SSFW309-20-50 | SS309 Foil Wrap .002" x 20" x 50' | $206.38 | $0.00 |
-
+
|
|
| SSFW309-20-100 | SS309 Foil Wrap .002" x 20" x 100' | $375.08 | $0.00 |
-
+
|
| SSFW309-10-12 | SS309 Foil Wrap .002" x 10" x 12 | $57.65 | $0.00 |
-
+
|
|
| SSFW309-10-25 | SS309 Foil Wrap .002" x 10" x 25' | $79.25 | $0.00 |
-
+
|
|
| SSFW309-10-50 | SS309 Foil Wrap .002" x 10" x 50' | $140.06 | $0.00 |
-
+
|
|
| SSFW309-10-100 | SS309 Foil Wrap .002" x 10" x 100' | $252.28 | $0.00 |
-
+
|
Mechanical Tool Properties
| Specs | Gauge | UTS (Ksi) | 0.2% YS (Ksi) | %EL In 2% | Hard | Bend | Corrosion | Ann Temp |
|---|---|---|---|---|---|---|---|---|
| In | Min - Max | Min - Max | Min | F | ||||
| ASTM A 240/A 240M-98a | All | 70 - — | 30 | 40 | RB 95 Max | None | A262 PRAC E | >1900 |
| AMS 5510N | >0.002 To <0.003 >0.003 To <0.004 Over 0.004 To 0.249 | 70 - 110 70 - 105 70 - 100 | 25 - — 25 - — 25 - — | 20 30 40 | RB 95 Max | 180-HW-IT | A262 PRAC E A262 PRAC E A262 PRAC E | Not Specified Not Specified Not Specified |
| Specs | Starke | Rm (Mpa) | Rp 0.2 (Mpa) | A 50.8 mm | Hard | Bend | Corrosion | Ann Temp |
| MM | Min - Max | Min - Max | Min | C | ||||
| ASTM A 240/A 240M-98a | All | 517 - — | 207 - — | 40 | RB 95 Max | None | A262 PRAC E | >1038 |
| AMS 5510N | >0.051 To <0.076 >0.076 To <0.10 Over 0.10 To 6.32 | 483 - 758 483 - 724 483 - 689 | 172 - — 172 - — 172 - — | 20 30 40 | RB 95 Max | 180-HW-IT | A262 PRAC E A262 PRAC E A262 PRAC E | Not Specified Not Specified Not Specified |
Melting Range:
2250 – 2600F
1400 – 1425C
Best Usage Temp:
Up to 1800F
Density:
8.00 g/cc
0.29 lb/in3
| Specs | Gauge | UTS (Ksi) | 0.2% YS (Ksi) | %EL In 2% | Hard | Bend | Corrosion | Ann Temp |
|---|---|---|---|---|---|---|---|---|
| In | Min - Max | Min - Max | Min | F | ||||
| ASTM A 167-96 309 | All | 75 - — | 30 | 40 | RB 95 Max | None | A262 PRAC E | >1900 |
| ASTM A 240/A 240-98a ANN | All | 75 - — | 30 | 40 | RB 95 Max | None | A262 PRAC E | >1900 |
| AMS 5523E ANN | >0.002 to <0.003 >0.003 to <0.004 Over 0.004 to 0.249 | 75 - 110 105 100 | 30 | 20 30 40 | RB 95 MAX RB 95 MAX RB 95 MAX | 180-HW-IT 180-HW-IT 180-HW-IT | None None None | Not Specified Not Specified Not Specified |
| Specs | Starke | Rm (Mpa) | Rp 0.2 (Mpa) | A 50.8 mm | Hard | Bend | Corrosion | Ann Temp |
| MM | Min - Max | Min - Max | Min | C | ||||
| ASTM A 167-96 309 | All | 517 - — | 207 - — | 40 | RB 95 Max | None | A262 PRAC E | >1038 |
| ASTM A 240/A 240-98a ANN | All | 517 - — | 40 | RB 95 Max | None | A262 PRAC E | >1038 | |
| AMS 5523E ANN | >0.051 To <0.076 >0.076 To <0.102 Over 0.102 To 6.32 | 517 - 758 724 689 | 207 | 20 30 40 | RB 95 Max RB 95 Max RB 95 Max | 180-HW-IT 180-HW-IT 180-HW-IT | None None None | Not Specified Not Specified Not Specified |
